DCM1e - Mixer - Zoner - Control Hub
The Cloud DCM1e is an all in one control hub which allows the connection of remote panels for input and control over large cable lengths, simply and easily via screened RJ45 connections.
You can connect a vast number of Cloud input plates to the DCM1e and have control over them with the CDR1. For example you can have a mosque with 3 floors and a sound signal each floor going through either it's own floor or whichever floor selects that signal source. The Cloud website has a lot of different applications where a DCM1e can be used, pretty much the sky is the limit.

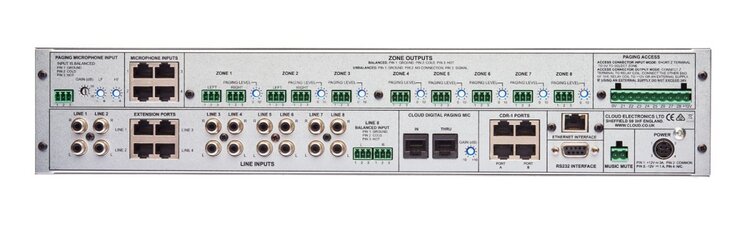

The Cloud DCM1 "e" .The E is the new Ethernet version of the DCM1 Digital Control Zone Mixer. The addition of an ethernet port on the rear panel of the new DCM1e allows its own on-board web-server to be connected via an RJ-45 socket to an independent or existing switch or router.This feature means the new DCM1e can be configured and controlled remotely by any mobile device or PC connected to the same network.
Using the web browser of any mobile device . Users have "limited installer defined" controls via simple and intuitive interface pages. Power Users are provided with additional installer defined controls, whilst Installers have administrator status via a password protected "Configuration Options" screen.
Multiple devices can connect and operate the DCM-1e concurrently, providing complete flexibility and control for up to eight separate zones, if required.
8 Stereo Line Inputs (1 Balanced)
8 Balanced Line Outputs (2 Stereo + 6 Mono)
4 Dedicated RJ-45 Ports for optional Line Inputs (LE-1)
4 Dedicated RJ-45 Ports for optional Mic Input Sockets (ME-1)
Microphone Paging to all or any zone with fully programmable override logic
Separate analogue paging Microphone Input with analogue contact closure selection
Configurable remote Controls (CDR-1)
Configurable Line Priority by Zone
RS-232 Interface for Crestron/Other Control
Ethernet Connection Socket and Web Server for PC,Tablet & Mobile Device Control
Accepts Bose, Amina and Active Audio EQ cards
Accessories:
BOSE Loudspeaker EQ Card
CDR1-FS Remote Music Source Select (DCM-1) Silver
EQ Cards for Amina AIWX & LFiT Loudspeakers
CDR-1W Remote Music Source / Volume Select Panel in White (DCM-1)
CDR-1B Remote Music Source / Volume Select Panel in Black (DCM-1)
CDR-1FB Remote Music Source Select (DCM-1) Black
CDR-1FW Remote Music Source Select (DCM-1) White
LE-1MB Media Size Line Input Module - Black (DCM1 / DCM1e)
ME-1MB Media Size Microphone Input Module - Black (DCM-1 / DCM-1e)
LE-1B Line Input Module - Black (DCM-1 / DCM-1e)
LE-1W Line Input Module - White (DCM-1 / DCM-1e)
LE-1MW Media Size Line Input Module - White (DCM1 / DCM1e)
ME-1B Microphone Input Module - Black (DCM-1 / DCM-1e)
ME-1W Microphone Input Module - White (DCM-1 / DCM-1e)
ME-1MW Media Size Microphone Input Module - White (DCM-1 / DCM-1e)
BE-1B Balanced Input Module - Black (DCM-1 / DCM-1e)
BE-1W Balanced Input Module - White (DCM-1 / DCM-1e)
BE-1MB Media Size Balanced Input Module - Black (DCM-1 / DCM-1e)
BE-1MW Media Size Balanced Input Module - White (DCM-1 / DCM-1e)
PM1 Paging Microphones
PM4 Paging Microphone
PM8 Paging Microphone
PM12 Paging Microphone
PM16 Paging Microphone
PM4-SA & PM8-SA 4 & 8 Zone Paging Spot Announcer
PM4-SA & PM8-SA (Mic Removed) 4 & 8 Zone Paging Spot Announcer
