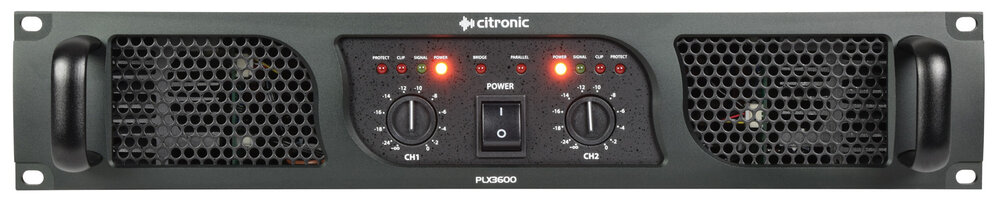

Citronic PLX3600 Power Amp

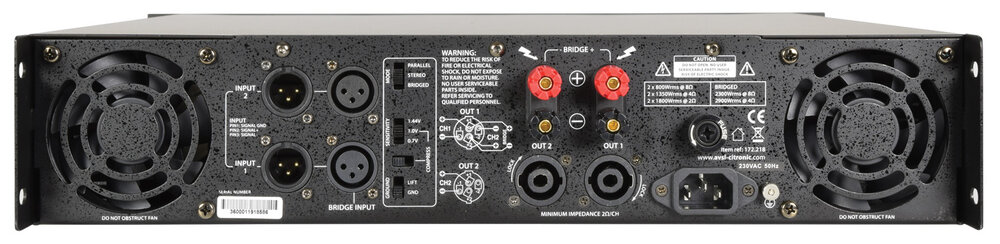

19" rackmount 2U power amplifiers with dual fan cooling and class H architecture for safe, reliable power delivery. Balanced inputs via 6.3mm jack or XLR sockets, speaker outputs on 2 SPK connectors or 4mm binding posts. High power output stable down to 2 Ohms load per side can also be bridged mono to 4 Ohms. Switchable ground lift, bridge mode and clip limiter.
- Bridge mode for high power mono operation
- Output stable down to 2 Ohms
- Removable handles for low profile install
- Switchable clip limiter
PLX Series model outputs
PLX 2000 2 x 400 Watts RMS at 8 Ohms
PLX2800 2 x 650 Watts RMS at 8 Ohms
PLX3600 2 x 800 Watts rms AT 8 Ohms
- Power supply 230Vac, 50Hz (IEC)
- Controls Level channel 1, level channel 2, ground, mode, clip limiter
- Input impedance 20k ohms
- Frequency response 5Hz - 50kHz
- Total harmonic distortion 0.05%
- Slew rate 40V/us
- Damping factor >400
- Protection Short-circuit, overload, D.C. and thermal protect
- Dimensions 482 x 453 x 88mm (2U)
- Class H design
- Power rms @ 2 Ohms 2 x 1800WPower rms @ 4 Ohms 2 x 1350WPower rms @ 8 Ohms 2 x 800W
