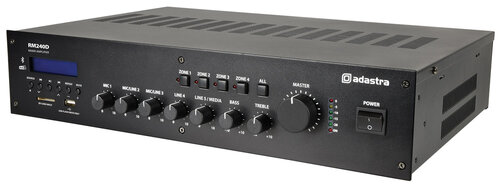

A rack-mountable 5-channel mixer amplifier, tailored to commercial sound installations, that can either be used as a 100V line amplifier or a standard low-impedance amp. Versatile input options include XLR (with switchable phantom power), mic/line jack, and RCA line. Features an inbuilt FM radio tuner, front-mounted SD and USB ports, and Bluetooth connectivity, all controlled via an integrated media player for hassle-free playback. A switchable ‘voiceover’ feature automatically lowers the background music volume when a signal is detected via mic input 1 and rear panel 24V contacts can mute all except mic input 1 when triggered.
- 2U 19" rack mountable (rack ears supplied)
- XLR input with switchable +20V phantom power – ideal for condenser microphones and paging microphones with chimes
- 2 x mic/line inputs, 2 x RCA line inputs, and 1 x RCA line output
- Switchable ‘voiceover’ feature
- Inbuilt media player with SD, USB and Bluetooth inputs and integrated FM radio tuner
- 100V line or 4-16 ohm speaker output
- 24V emergency mute contacts
- Option for mains or 24Vdc power
- Editable Bluetooth ID for unique pairing
Power supply: 170-264Vac, 50Hz (IEC)
DC power: 24Vdc (screw terminals)
Inputs: Mic XLR, 2 x mic/line jack, 2 x RCA line
Input sensitivity : mic 1 (balanced): -53dBV
Input sensitivity : line (unbalanced): -15dBV (-18.5dBV line 5)
Input impedance : mic 1: 5k Ohms
Input impedance : inputs 2-5: 1k Ohms
Line output: RCA
Controls: Mic1, mic/line2+3, line4+5, bass, treble, master volume
Equaliser : bass: 100Hz ±10dB
Equaliser : treble: 10kHz ±10dB
Rear panel switches: Phantom, Vox, Mic/Line (2 + 3)
Phantom power: +20V (mic 1 XLR, switchable)
Audio source: DAB+/FM tuner, USB/SD player, Bluetooth receiver
Emergency control: 24V contacts - mute all except Mic.1 when triggered
Bluetooth version: 5.0
THD: <1.0%
Speaker outputs: 4 switched + 1 non-switched 100V / 4-16 Ohms / COM
