HW Audio:. ADASTRA RM120D 100V Mixer-Amplifier With DAB+, BT, USB/SD

Free Shipping

Our Price: £ 299.00

Shipping: £0.00 *

MPN: 953.224UK

Brand: Adastra

EAN: 5015972227312

Availability: Bolton 1 Supplier drop ship

* Shipping price shown uses the cheapest domestic shipping service. More options available at checkout.

RM-series 100V Mixer-Amplifier with DAB+, BT, USB/SD

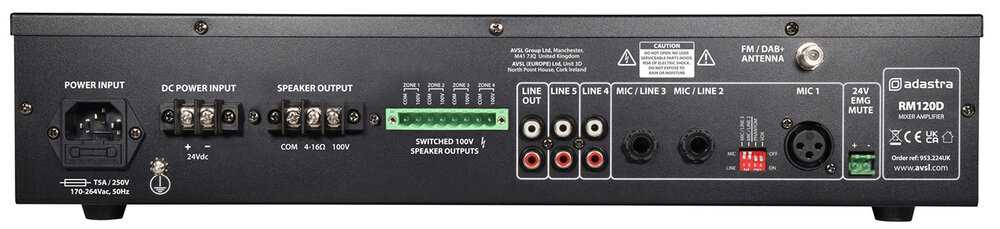

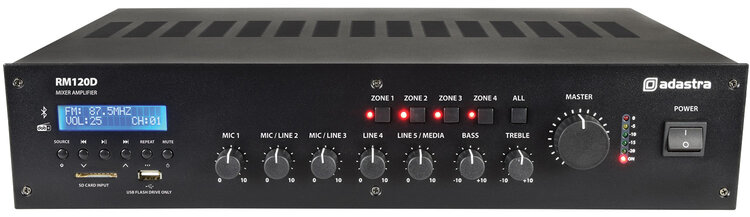

5-channel 19" rack-mountable mixer-amplifier, tailored to commercial sound installations to power 100V line speakers or standard speakers down to a 4 Ohm load. Input options include XLR (with switchable phantom power), mic/line jack, and RCA line. Features an inbuilt DAB+/FM radio tuner, front-mounted SD/USB ports, and Bluetooth® connectivity, all controlled via an integrated media player for hassle-free playback. A switchable ‘voiceover’ feature automatically lowers the background music volume when a signal is detected via mic input 1, and rear panel 24V contacts can mute all except mic input 1 when triggered. Outputs on screw terminla are via 4 switchable zones with a separate "always on" output for priority alert speakers.

DAB+/FM radio tuner
Bluetooth receiver with unique serial ID
USB/SD audio player
4 switchable 100V outputs and 1 unswitched output
Optional 4-16 Ohm output
XLR input with switchable +20V phantom power

2 x mic/line inputs, 2 x RCA line inputs, 1 x RCA line output
Switchable VOX voiceover feature
2U 19" rack mountable (rack ears supplied)
24V emergency mute contacts
Mains 230Vac or 24Vdc power option

Power supply170-264Vac, 50Hz (IEC)
DC power24Vdc (screw terminals)
InputsMic XLR, 2 x mic/line jack, 2 x RCA line
Input sensitivity : mic 1 (balanced)-53dBV
Input impedance : mic 15k Ohms
Input sensitivity : line (unbalanced)-15dBV (-18.5dBV line 5)
Input impedance : inputs 2-51k Ohms
Line outputRCA
Speaker outputs4 switched + 1 non-switched 100V / 4-16 Ohms / COM

Bluetooth version5.0
ControlsMic1, mic/line2+3, line4+5, bass, treble, master volume
Equaliser : bass100Hz ±10dB
Equaliser : treble10kHz ±10dB
Rear panel switchesPhantom, Vox, Mic/Line (2 + 3)
Phantom power+20V (mic 1 XLR, switchable)
Audio sourceDAB+/FM tuner, USB/SD player, Bluetooth receiver
Emergency control24V contacts - mute all except Mic.1 when triggered
THD<1.0%
