Stereo PA Amplifier 2 x 200W

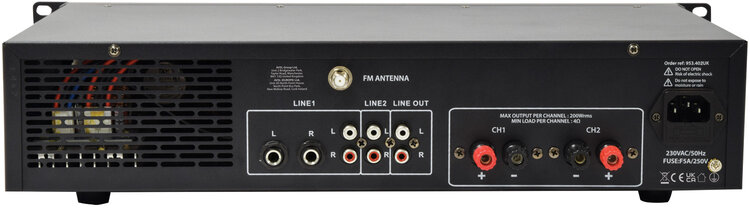

Fully featured stereo amplifier with mixer section for 2 microphones and a stereo audio source. An inbuilt media player section offers playback of mp3 audio tracks from USB drive or SD card and also has a Bluetooth receiver and FM radio tuner. A rotary switch selects between 2 rear stereo inputs, a front 3.5mm stereo input or the built-in media player. Speaker connections on the rear panel are via 4mm binding posts, which can drive up to 2 x 8 Ohm speakers per channel to deliver 2 x 200W. Designed to offer installers a flexible solution for P.A. and music playback in bars, restaurants and function rooms.
- Media player with USB/SD playback
- FM radio tuner with external aerial connection
- Bluetooth receiver
Power supply: 230Vac, 50Hz (IEC)
Output power rms @ 8 Ohms: 2 x 100W
Output power rms @ 4 Ohms: 2 x 200W
Amplifier : construction: Class D
Microphone inputs: 2 x 6.3mm jack (mono)
Auxiliary input: 3.5mm stereo jack
Line inputs: Line 1: L+R (6.3mm jack/RCA), Line 2: L+R (RCA)
Audio source: USB/SD mp3 playback, FM tuner, BT receiver
Protection: Thermal, over-current, over-voltage, short-circuit
Output controls: Source select, Bass, Treble, Ch1, Ch2
Input controls: Aux, Media, Line1, Line2, Mic1, Mic2, Talkover
Fuse: F5A, 250V
Speaker outputs: 4mm binding posts (2 channels)
Line output: 2 x RCA
Dimensions: 482 x 260 x 88mm
Weight: 5.21kg
Antenna connection: F type (FM tuner)
Frequency response: 20Hz - 20kHz ±0.5dB
Input sensitivity : aux: 0.480Vrms
Input sensitivity : line: 0.775Vrms
THD +N: <0.1%
Input impedance: 20k Ohms (balanced), 10k Ohms (unbalanced)
Dynamic range: 92dB[b
