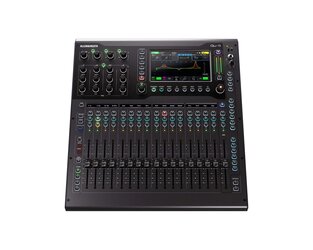

Qu-5 takes the ever-popular Qu-16 form factor and adds Allen & Heath’s powerful XCVI processing, new FX engines and Everything I/O connectivity. There’s also a larger capacitive touchscreen, channel strip displays, customisable layers and extra SoftKeys.
Both the Qu-5 and Qu-5D are rack mountable, 32 input channel, 96kHz digital audio mixers, combining high performance audio processing and professional features with ease of use and hands-on control.
The Qu-5 and Qu-5D are multi-purpose mixers suitable for live music/band use, AV and install, studio and broadcast. Workflow and UI have been designed to make operation easy for inexperienced users or volunteers, provide familiarity to those transitioning from analogue mixing and give quick access to more advanced features for the experienced engineer.
Contact us to get your project installed with one of these great mixers and leverage our skill in making your installation amazing.
Inputs Mic/Line Inputs: Balanced Combi XLR/Jack, fully recallable preamp Input Sensitivity: -60 to +0dBu TRS Inputs: -20dB Pad (Fixed) Preamp Gain: 0dB to +60dB, 1dB steps Maximum Input Level (XLR/Jack): +16dBu Mic input / +30dBu TRS pad input Input Impedance: >1.5kΩ MIC / >20kΩ TRS THD+N, Unity gain 0dB: 0.002% -92dB (20Hz-20kHz, AES Direct Out, 1kHz) THD+N, Mid gain +30dB: 0.004% -88dB (20Hz-20kHz, AES Direct Out, @-30dBu 1kHz) Phantom Power: +48V (+3V / -2V) Stereo Line Inputs: Balanced, 2x 1/4" TRS jack Input Sensitivity Nominal: +4dBu Trim: +/-24dB Maximum Input Level: +21dBu Input Impedance: >6kΩ Outputs XLR Outputs: Balanced, XLR Outputs A and B: Balanced 1/4" TRS Jack Source: Fully patchable Output Impedance: <75Ω Nominal Output: +4dBu = 0dB meter reading Maximum Output Level: +22dBu Residual Output Noise: -88dBu (muted, 20Hz-20kHz) AES Digital Output: Balanced XLR 2 channel, 96kHz sampling rate (Default with SRC Bypassed) Switchable output sample rates, 44.1/48/88.2/96kHz 2.5Vpp balanced terminated 110Ω Slink Connection Neutrik: EtherCON (RJ45) dSnake mode: 40 input, 20+40(ME) output channels, 48kHz DX mode: 32 input, 32 output channels, 96kHz GigaACE/GX: 128 input, 128 output channels, 96kHz Inputs: Fully patchable Outputs: Fully patchable Sync/SRC: Assignable as audio clock source, 48kHz<>96kHz SRC USB Audio Qu-Drive: USB-A or SD Card, recording or playback Stereo Record (USB-A): 2 channel, WAV, 48/96kHz, 24-bit, fully patchable Stereo Playback (USB-A): 1/2 channel, WAV, 44.1/48/96kHz 16/24-bit, fully patchable Multitrack Record (SDHC): 16 channels 96kHz, 32 channels 48kHz, 24-bit, WAV, fully patchable Multitrack Playback (SDHC): 16 channels 96kHz, 32 channels 48kHz, 24-bit, WAV, fully patchable SD Card: SDHC, 32GB, UHS-I, Class 10 for maximum channels, 48/96 kHz, 24-bit USB Audio Streaming: USB-C connection, USB 2.0 Core Audio compliant, ASIO/WDM for Windows Send (upstream): 32 channels, 48/96kHz, 24-bit Return (downstream): 32 channels, 48/96kHz, 24-bit Control Touch Screen: 7" Capacitive, 800 x 480 resolution, 24-bit RGB SoftKeys: 8 Mute Groups / DCA Groups: 8 / 8 Network: TCP/IP Ethernet for Control and MIDI MIDI: USB-C and TCP/IP Footswitch: Single or Dual, Momentary or Latching System 38 input, 28 bus, XCVI Core: Measured balanced XLR in to XLR out, 0dB gain, 0dBu input Dynamic Range: 110 dB Frequency Response: +0/-0.5dB 20Hz to 20kHz Headroom: +18dB Internal operating Level: 0dBu THD+N, Mic/Line routed to Main L/R Out: Unity gain, 0.005%, -87dB (20Hz-20kHz) dBFS Alignment: +18dBu = 0dBFS (+22dBu at XLR output) Meter Calibration: 0dB meter = -18dBFS (+4dBu at XLR out) Main Meter Type: 2x 12 segment, fast (peak) response, follows PAFL Channel Meter Type: Chromatic Channel Metering, fully programmable colour/brightness Peak Indication: -3dBFS (+19dBu at XLR out), Multi-point sensing Sampling Rate: 96kHz Bit Depth: XCVI custom bit depths, up to 96-bit Latency: <0.7ms, Local Mic Input to Main L/R Operating Temperature Range: 0 deg C to 40 deg C (32 deg F to 104 deg F) Mains Power: 100-240V AC, 50/60Hz Max Power Consumption: (Qu-5 / Qu-5D) 70W / 75W Input Source Processing Channels 1-32: Fully patchable ST1 / ST2 / USB Channels: Fixed patch, ST1 / ST2 / USB1&2 USB Global Source: Qu-Drive or USB-C Streaming (Auto Switching) Polarity: Normal/Invert Trim: -24 to +24dB High Pass Filter: 12/18/24dB per octave 20Hz – 2kHz Insert: Fully Patchable (Digital/Analogue/-10dBV level) Delay: Up to 341ms Gate: Patchable Sidechain Sidechain filter: Hi-pass (20Hz-5kHz), band-pass (120Hz-10kHz, Q=1), Lo-pass (120Hz-20kHz) Threshold / Depth: -72dBu to +18dBu / 0 to 60dB Attack / Hold / Release: 50µs to 300ms / 10ms to 5s / 10ms to 1s PEQ: 4-Band fully parametric, 20Hz-20kHz, +/-15dB Band 1, Band 4: Selectable Shelving (Baxandall), Bell, HPF/LPF 12dB/octave Band 2, Band 3: Bell Bell Width: Variable, 1.5 Q to 1/9th octave Compressor: Patchable Sidechain, Ducker mode, DEEP options, +18dB Makeup gain Sidechain filter: Hi-pass (20Hz-5kHz), band-pass (120Hz-10kHz, Q=1), Lo-pass (120-20kHz) Threshold / Ratio: -46dBu to 18dBu / 1:1 to infinity Attack / Release: 30µs to 300ms / 50ms to 2s Knee: Soft/Hard Detector response: Peak/RMS switchable Parallel Path Compression: dry/wet -inf to 0dB Channel Direct Out: Follow Fader/Mute/Mute Group/DCA (Global) Direct Out Source: Post-Preamp, Post-HPF, Post-Gate, Insert Return, Post-PEQ, Post Comp, Post-Delay Direct Out Level: trim -inf to 10dB (per channel) Mix Processing Insert: Fully Patchable (Digital/Analogue/-10dBV level) Delay: Up to 682ms Feedback Assistant: Automatic feedback suppression, 16 filters per mix, 8 concurrent detectors Filter Cut: 0dB to 18dB Automatic Filter Width: 18 to 116 Q Manual Filter Width: 6 to 640 Q GEQ: 28 bands 31Hz-16kHz, +/-12dB Gain, Constant 1/3 oct, DEEP options PEQ: As Input PEQ Compressor: As Input Compressor FX Internal FX: 6x FX engines, Send>Return (4 dedicated FX send) or Inserted (with Wet/Dry) Types: SMR Reverb, Stereo Tap Delay, Gated Reverb, ADT, Blue Chorus Symphonic Chorus, Flanger, Phaser 6x Dedicated Stereo FX returns: Fader, Pan, Mute, Routing to LR/Mix, 4-Band PEQ Audio Tools PAFL: PFL or stereo in-place AFL, 0 to -24dB Trim, PAFL Delay Up to 682ms Talkback: Dedicated input, Assignable to any mix, Preamp/Trim Control, 20Hz 20kHz 12dB/oct HPF Signal Generator: Assignable to any input or mix, Sine/White/Pink/Bandpass Noise RTA: 2x 31-Band 1/3 oct (Stereo) or 61-Band 1/6 octave (Mono), 20Hz-20kHz AMM Type: 32 Channel, Gain Sharing Algorithm Sidechain Filter HPF / LPF: 250Hz / 5kHz (12dB/octave) Priority: -15dB to +15dB per channel Dimensions & Weights Dimensions (WxDxH): 440 x 476 x 213 mm (17.3" x 18.7" x 8.4") Weight: 10 kg (22 lbs)
