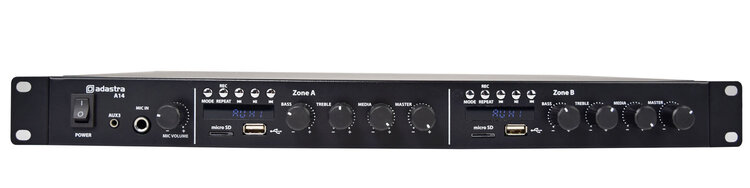

HW Audio:. A14 Dual Stereo Mixer-Amplifier 4 X 100W 953.414, Unboxed Sample

Free Shipping

Options:

New Stock

Our Price: £ 212.43

List price: ~~£219.00~~

Our Price: £ 145.50

Shipping: £0.00 *

MPN: a14 sample

Brand: Adastra

Availability: Bolton 3

* Shipping price shown uses the cheapest domestic shipping service. More options available at checkout.

Highlights

2 completely independent or linkable audio players
USB / microSD mp3 audio playback on each player
Inbuilt FM radio tuners
Dual Bluetooth wireless receivers
Microphone input for voice announcements to both zones
Dual 2 x 100W class-D power amplifiers

Comprehensive 1U PA amplifier with 2 independent stereo zones and a global microphone input.

Each zone has an independent audio player module which can select between USB / microSD mp3 player, FM tuner, Bluetooth receiver, 2 stereo line inputs (rear panel RCA) and another line input on the front panel (3.5mm).

Playback can be controlled from the front panel or by the supplied I.R. remote control handsets.

In addition, each player has an Aux 4 setting allowing it to connect to the other player module, meaning either one of these players can be used for both zones if needed. Mic inputs 1 and 2 are live to both output zones at all times. 2 pairs of speaker connections on the rear panel are connected using removable Euroblock screw terminals, which can drive up to 2 x 8 Ohm speakers on each of the 4 channels.

The housing is 1U 19" rack-mountable and is supplied with front and rear brackets, which may be rotated for mounting flat against a wall or under a counter top.

Overall, a complete solution for completely independent background music, audio visual and voice announcements in venues with 2 separate areas.

Check the title description to see if this is brand new stock or ex demo or a sample product

Power supply:    230Vac, 50Hz (IEC)
Output power : 4 Ohms:    2 x 2 x 100Wrms
Output power : 8 Ohms:    2 x 2 x 50Wrms
Inputs : Mic:    6.3mm (front and rear panel in parallel)
Inputs : Aux:    Aux 1-3 (L+R RCA rear panel) + Aux 3 also 3.5mm on front panel
Audio source:    Dual internal USB/microSD player / FM tuner / Bluetooth receiver
Antenna connection:    F-type (FM tuner)
Dimensions:    482 x 285 x 44mm (1U)
Weight:    2.933kg
