4K HDMI Matrix 4x2 128.849

Name: 4K HDMI Matrix 4x2 128.849
Brand: Av:link
SKU: 442133
Price: 66.93 GBP
Availability: InStock

Free Shipping

List price: ~~£69.00~~

Our Price: £ 66.93

Shipping: £0.00 *

MPN: 128.849UK

Brand: Av:link

EAN: 5015972223949

Availability: Bolton 1 Supplier drop ship

* Shipping price shown uses the cheapest domestic shipping service. More options available at checkout.

Highlights

Simple setup and operation
Gold plated HDMI connectors for optimum signal transfer
Supports HDMI resolutions up to 3840 x 2160 @ 60Hz for compatibility with the latest 4K digital TV boxes
Supports DTS-HD, Dolby True, DTS, Dolby-AC3 and DSD audio formats
Digital SPDIF and analogue 3.5mm jack audio outputs
Ideal for entertainment, hospitality and other commercial venues with multiple sources and displays

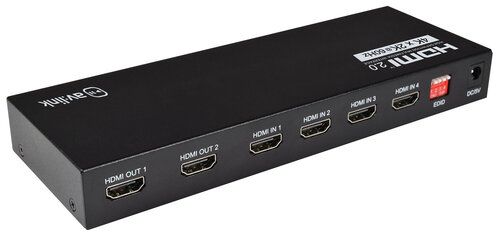

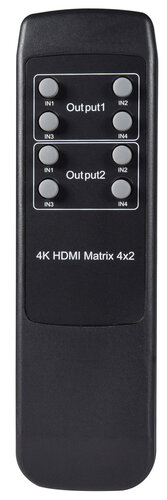

A 4K HDMI matrix to switch between 4 source devices and 2 display outputs. Use with HDMI cables of a combined 30m per input/output for 4K and FHD resolutions, or a combined 10m per input/output for 4K@ 60Hz. SPDIF and 3.5mm stereo outputs allow the audio signal for each source device to be simultaneously channelled through a separate sound system and/or headphones. Compatible with the latest 4K digital TV boxes making it ideal for hospitality and entertainment venues. Supplied with IR remote to switch between sources for both outputs.

Max. resolution:    3840 x 2160 @ 60Hz
Display colours:    8/10/12bit deep colour
Audio format:    DTS-HD, Dolby True, DTS, Dolby-AC3 and DSD
Max. bandwidth:    600MHz
Max. baud rate:    3 x 6Gbps
Transmission distance:    30m max 4K @ 30Hz and FHD or 10m max 4K @ 60Hz
Max. working current:    600mA
Operating temperature range:    -15°C to +55°C
Input connections:    4x HDMI
Output connections:    2x HDMI, 2x Optical (Toslink), 2x 3.5mm Stereo
Battery : remote:    2x AAA (not supplied)
Power adaptor:    Input: AC (50Hz, 60Hz) 100-240V, Output: DC5V/1A
Dimensions:    99 x 70 x 27mm
Weight:    300g
HDCP version:    2.2
