SA-series Secure Wall Amplifier 100V with UHF Mic + Media PlayerPublic address mixer-amplifier built into a surface-mount secure box. A powerful output can drive either 100V line or low impedance speakers from binding post terminals inside the cabinet. The system includes a handheld UHF microphone with an inbuilt receiver and 2 switchable wired mic/line inputs are provided on combo XLR/jack sockets. Each mic input has switchable +48V phantom power and priority override, whch mutes the Aux inputs during voice operation. An internal media player enables playback of audio tracks from USB/SD player, FM tuner or Bluetooth pairing. Alternatively, line inputs can be connected to the Aux 1 RCA sockets or separate Aux 2 RCA/3.5mm jack sockets. The combination of flexible input section and a high efficiency amplifier in a strong, lockable cabinet provides a complete solution for buildings where security and ease of use is essential.UHF wireless handheld mic includedUSB/SD media playerBluetooth receiver2 switchable mic/line inputsSwitchable phantom power for condenser mics100V or low impedance operationSecure lockable cabinet
Weight: 8.70kg
FuseF1AL (20x5mm)
Output power : rms 120W
Power supply 170-264Vac, 50Hz (IEC)
Amplifier : construction Class-D + output transformer
Phantom power +20V switchable to each XLR input
Input impedance Mic: 600 Ohms / Line: 10k Ohms
Input sensitivityMic: -42dB / Line: -10dB
Frequency response : mic85Hz-22kHz
Frequency response : line Line 1+2: 80Hz-24kHz, Line 3+4: 85Hz-24kHz
SNR Mic: 66dB / Line: 76dB
THD<0.4% @ 1kHz Speaker outputs

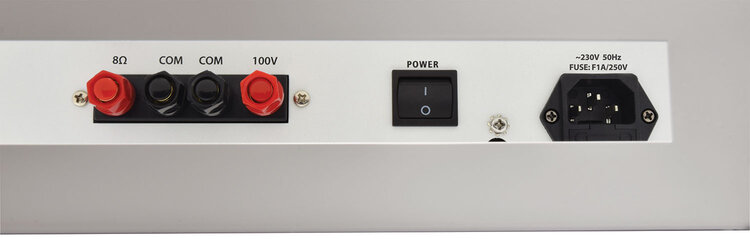

8 Ohm / Com / Com / 100V
Music source: USB/SD player, FM tuner, Bluetooth Mic/line inputs
2 x combo XLR/jack
Line inputs RCA (Aux 1), RCA or 3.5mm jack (Aux 2)
Line output XLR male connector
Equalization: Bass + Treble each channel
Bluetooth version 5.0 Carrier frequency 864.5MHz
Batteries : handheld transmitter2 x AA (alkaline)
Wireless range: 50m (max) Dimensions: 375 x 345 x 160mm
