HW Audio are pleased to be able to offer a range of turnkey systems for a wide variety of applications, the same as what we would install ourselves, so we know what works! This system is available with blasck or white speakers, just check the item title for the colour!
This system is what we call a low impedance system, so it's just like a higher output version of a hifi system at home, with larger speakers than the average hifi speaker, but not too big!
The amplifier has connections to the music source that you need - bluetooth of wired, or in areas where you can't leave a phone or tablet unattended, then you can use a usb stick or SD card loaded with music and it will play the playlist automatically.
It also has an FM radio built in, but you will require an aerial (not supplied).
There are full instructions included, even a box of cable clips are provided. All, you need is a drill, fixings and a screwdriver set.
There are mic inputs should you need them, plus loads of other inputs for connecting things like cd players or DAB radios.
- Speaker specifications
- Dimensions: 280 x 374 x 257mm
- Power input max: 90w

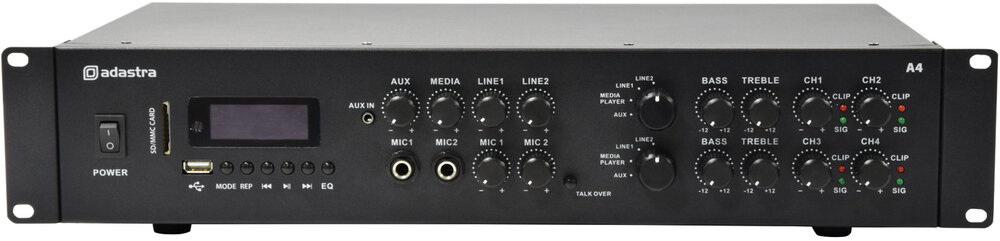

- Amplifier specifications
- Power supply230Vac, 50Hz (IEC)
- Amplifier : constructionClass D
- Frequency response20Hz - 20kHz ±0.5dB
- Microphone inputs2 x 6.3mm jack (mono)
- Line inputsLine 1: L+R (6.3mm jack/RCA), Line 2: L+R (RCA)
- Input sensitivity : line0.775Vrms
- Auxiliary input3.5mm stereo jack
- Input sensitivity : aux0.480Vrms
- Input impedance20k Ohms (balanced), 10k Ohms (unbalanced)
- Audio sourceUSB/SD mp3 playback, FM tuner, BT receiver
- Bluetooth version2.3
- Input controlsAux, Media, Line1, Line2, Mic1, Mic2, Talkover
- Line output4 x RCA
- Speaker outputs4mm binding posts (4 channels)
- Antenna connectionF type (FM tuner)
- Output controls2 x source select, 2 xBass, 2 xTreble, Ch1, Ch2, Ch3, Ch4
- Dynamic range92dB
- THD +N<0.1%
- ProtectionThermal, over-current, over-voltage, short-circuit
- Dimensions482 x 260 x 88mm
