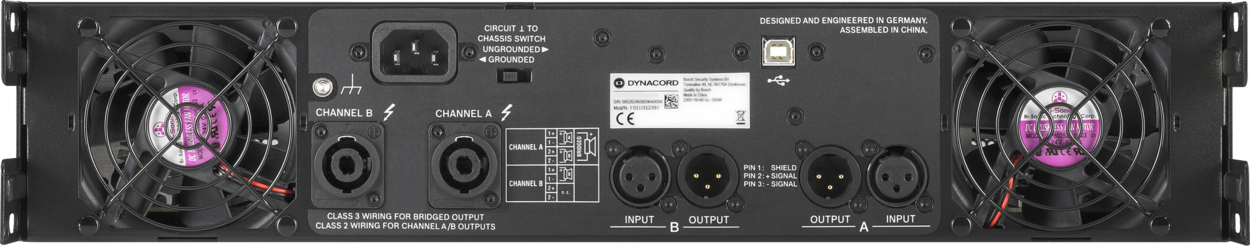

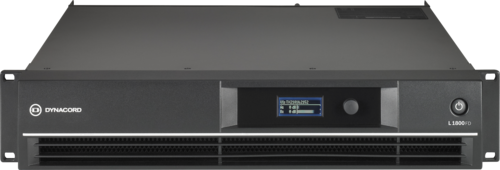

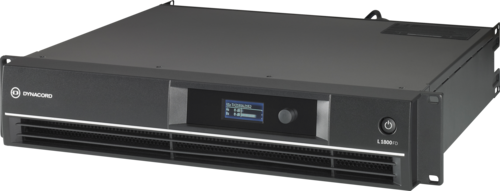

Dynacord L1800FD 2X950W DSP Amplifier

Free Shipping

List price: ~~£988.20~~

Our Price: £ 634.00

Maximum Output Power, Bridged	4Ω: 2800W; 8Ω: 1700W
Maximum RMS Voltage Swing, THD = 1%, 1kHz	65.1V
Voltage Gain ref.1kHz	32.0dB
IMD-SMPTE, 60 Hz, 7 kHz	<0.1%
DIM 30	<0.05% (3.15 kHz, 15 kHz)
Maximum Input Level	+21dBu
Crosstalk	< -80dB (ref. 1 kHz, at 100 W/4 Ω)
Frequency Response	10 Hz to 21 kHz (±1 dB)
Input Impedance, active balanced	20kΩ
Signal-to-Noise Ratio (A-weighted)	>105dB
Output Noise , A-weighted	<-68dBu
Output Stage Topology	Class AB
Power Requirement	240 V, 230 V, 120 V or 100 V; 50 Hz to 60 Hz (factory configured)
Power Consumption	700W (⅛ Maximum Output Power @4Ω)
Protection	Audio limiters, high temperature, DC, HF, Back-EMF, Peak current limiters, Inrush current limiters, Turn on delay
Cooling	Front-to-rear, 3-stage-fans
Safety Class	I
Available Color	Black
Height	88mm (3.46")
Width	483mm (19.02")
Depth	462.4mm (18.2")
Weight Net	15.2kg (33.51 lbs)
Signal Processing	FIR Filters, Audio Limiters; Output delay per channel; 31 band GEQ per channel; PEQ per channel; Load impedance
Mains Fuse	240 V/230 V: T10AH; 120 V/100 V: T20AH
Operating Temperature Range	+5°C to +40°C (40°F to +105°F)
Total Harmonic Distortion	<0.05% (600 W/4 Ω MBW = 80 kHz, 1 kHz)
