Citronic, CDM10:4 USB, DJ Mixer, 171.135

CITRONIC CDM10:4 (MKV) 19" 4 CHANNEL USB MIXER

A classic mixer, the Citronic CDM10:4 has always been the choice of the working DJ, with a simple layout that is packed with all the features you need. The MKV version comes with connectivity through USB and an additional auxiliary input on the top panel for external sound sources such as MP3 player.

Main features of the Citronic CDM 10:4 Mixer

• 4 channel, 17 inputs
• 2 dedicated balanced mic channels with 3-band EQ
• Fully featured mic override facility for use with radio mics
• 2 auxiliary mics on channels 1 and 2
• 2 phono inputs switchable to line level inputs
• 8 CD/Line inputs plus 2 switchable
• 3.5mm aux input on top panel for external sound sources such as an MP3 player
• 2 USB input/outputs on channels 3 and 4
• Fully assignable VCA crossfader
• Punch buttons
• Hotswap channel faders allow changing in seconds
• Individual gain control per channel
• 3-Band EQ with total kill
• Fully assignable send and return
• 10-Bar LED monitor display
• 12V BNC light socket for the (173.501UK) not supplied
• Booth output
• Balanced XLR and unbalanced phono outputs

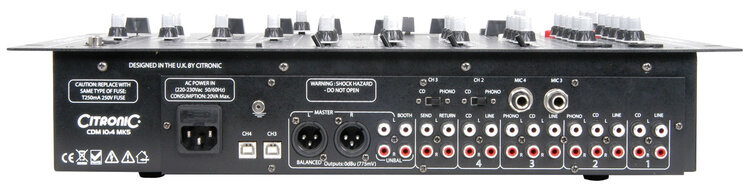

• Back panel can be positioned on rear or underside of mixer for install
• 19" (6U) rack mountable

Power supply 230Vac, 50Hz
Equaliser : Bass +12dB, -26dB @ 100Hz
Equaliser : Midrange +12dB, -26dB @ 800Hz
Equaliser : Treble +12dB, -26dB @ 9kHz
Headphone output 112mV @ 32 Ohms
Input : Line 195mV, 50k Ohms
Input : Mic 1.5mV, 2k Ohms
Input : Phono 4mV, 47k Ohms
Signal to noise ratio : Line >87dB
Signal to noise ratio : Mic 68dB
Signal to noise ratio : Phono 73dB
Dimensions 483 x 266 x 80mm (6U)
Weight 5kg

MPN: 171.135

Manufacturer: Citronic
