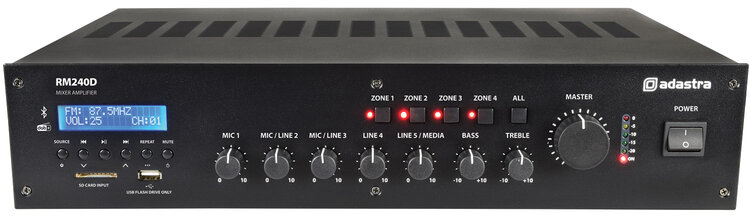

HW Audio:. Adastra RM240D Mixer-Amplifier 100V (953.225UK), New Stock

Free Shipping

Options:

Our Price: £ 199.00

Our Price: £ 349.00

Shipping: £0.00 *

MPN: 953.225UK

Brand: Adastra

EAN: 5015972227329

Availability: Supplier Drop Ship

* Shipping price shown uses the cheapest domestic shipping service. More options available at checkout.

A rack-mountable 5-channel mixer amplifier, tailored to commercial sound installations, that can either be used as a 100V line amplifier or a standard low-impedance amp. Versatile input options include XLR (with switchable phantom power), mic/line jack, and RCA line. Features an inbuilt FM radio tuner, front-mounted SD and USB ports, and Bluetooth connectivity, all controlled via an integrated media player for hassle-free playback. A switchable ‘voiceover’ feature automatically lowers the background music volume when a signal is detected via mic input 1 and rear panel 24V contacts can mute all except mic input 1 when triggered.

2U 19" rack mountable (rack ears supplied)
XLR input with switchable +20V phantom power – ideal for condenser microphones and paging microphones with chimes
2 x mic/line inputs, 2 x RCA line inputs, and 1 x RCA line output
Switchable ‘voiceover’ feature
Inbuilt media player with SD, USB and Bluetooth inputs and integrated FM radio tuner

100V line or 4-16 ohm speaker output
24V emergency mute contacts
Option for mains or 24Vdc power
Editable Bluetooth ID for unique pairing

Power supply:    170-264Vac, 50Hz (IEC)
DC power:    24Vdc (screw terminals)
Inputs:    Mic XLR, 2 x mic/line jack, 2 x RCA line
Input sensitivity : mic 1 (balanced):    -53dBV
Input sensitivity : line (unbalanced):    -15dBV (-18.5dBV line 5)
Input impedance : mic 1:    5k Ohms
Input impedance : inputs 2-5:    1k Ohms
Line output:    RCA
Controls:    Mic1, mic/line2+3, line4+5, bass, treble, master volume
Equaliser : bass:    100Hz ±10dB
Equaliser : treble:    10kHz ±10dB
Rear panel switches:    Phantom, Vox, Mic/Line (2 + 3)
Phantom power:    +20V (mic 1 XLR, switchable)
Audio source:    DAB+/FM tuner, USB/SD player, Bluetooth receiver
Emergency control:    24V contacts - mute all except Mic.1 when triggered
Bluetooth version:    5.0
THD:    <1.0%
Speaker outputs:    4 switched + 1 non-switched 100V / 4-16 Ohms / COM
